WS
Single Side Automatic Sliding Series
 *
Saves Space
* Reliable
* Bigger Output
* More Economicel

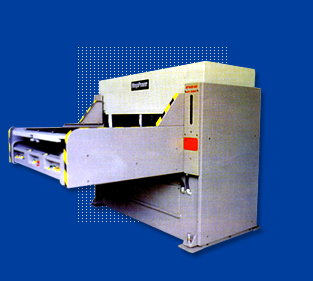

The new w-series computer-controlled automatic heavy duty hydraulic
cutting machine is specially designed for widebase cutting. The
patented automatic movement for sliding table. The fast approach
of the cutting head gives sharp cutting edges to the materials
and with one central piston gives the machine accuracy and parallelism
all over the cutting area. A wiper attached to the edge of the
sliding table keeps the machine tabletop clean before every cutting
begins. All moving parts are automatically lubricated. The strong
construction is welded by robots for reliability and ensures minimum
deflection under load.
| Machine Interoduction |
| 1. |
Electrical box |
| 2. |
Knife search panel |
| 3. |
The four coluns |
| 4. |
Automatic lubrication |
| 5. |
Big oil tank |
| 6. |
Double action hydraulic system |
| 7. |
Wiper (cleaning away all waste from the
table top) |
| 8. |
Rotary Arm and its adjusting system |
| 9. |
The skateboard slips the au to land the pedestal to
face the device |
|
|
Model No.
|
Pressure
Ton
|
Working
Area
mm
|
Motor
HP
|
Stroke
mm
|
Machine
Dimensions
mm
|
淨重
kg
|
毛重
kg |
WS430-80
|
80 |
1260X760 |
7.5 |
160 |
2060X1900X1750 |
4750 |
5400 |
| WS430-100 |
100 |
1260X760 |
7.5 |
160 |
2060X1900X1580 |
5000 |
5650 |
WS430-150
|
150 |
1260X760 |
10 |
160 |
2100X1900X1800 |
6500 |
7000 |
| WS4232-130 |
130 |
1360X820 |
7.5 |
200 |
2200X2000X1800 |
5600 |
6100 |
| WS4232-200 |
200 |
1360X820 |
10 |
200 |
2200X2100X1900 |
6550 |
7000 |
| WS532-100 |
100 |
1520X820 |
7.5 |
200 |
2300X2100X1800 |
5800 |
6300 |
| WS532-130 |
130 |
1520X820 |
7.5 |
200 |
2300X2100X1800 |
5900 |
6400 |
| WS532-200 |
200 |
1520X820 |
10 |
200 |
2300X2100X1800 |
6500 |
7100 |
| WS5232-130 |
130 |
1620X820 |
7.5 |
200 |
2450X2100X1800 |
6385 |
6885 |
| Operating System and
Functions |
| 1. |
By computer control |
| 2. |
Automatic search for knife height
Setting of knife height is done automatically |
| 3. |
The cutting parallelism
a. By sinle piston system
b. Left and right levers move simultaneously and achieve excellent accuracy |
| 4. |
Automatic sliding table
a.By rotary hydraulic system
b.Speed of sliding can be adjusted
c.The four small hydraulic piston
Before the cutting begins the sliding table slides and then makes contact with
the machine body tocreate a solid piece which eliminates distortion. |
| 5. |
Wiper Equipment
To ensure machine cutting accuracy
it is very important to keep the top of machine body table
clean at all times. |
| 6. |
Movement device of cutting board
Auto movement about 0.2m/m one cutting for increasing 5 times
of cutting board life. |
 |
 |
 |
| Auto Search |
Cutting Parallelism |
Automatic Sliding Table |
| The Operating Panel |
| 1. |
Height is within the reach of the operator |
| 2. |
Motor On / Off switch |
| 3. |
Emergency switch |
| 4. |
Two hand press start switch |
| 5. |
Selector switch
a.Knife setting
b.Stroke control
c.Pressure
control
Machine is equipped with stroke and pressure control for operator
to select the exact requirement for the cutting purpose |
| 6. |
Depth control button
Increase by red button and decrease by
yellow button which is easy and simple to operae |
| Types of Cutting
Material |
| a. |
Gasket |
| b. |
Rubber |
| c. |
PVC |
| d. |
PU, EPE and other |
| e. |
Vacuum forming |
| f. |
Leather |
| g. |
Carton box, etc |
|
 |
|
|
